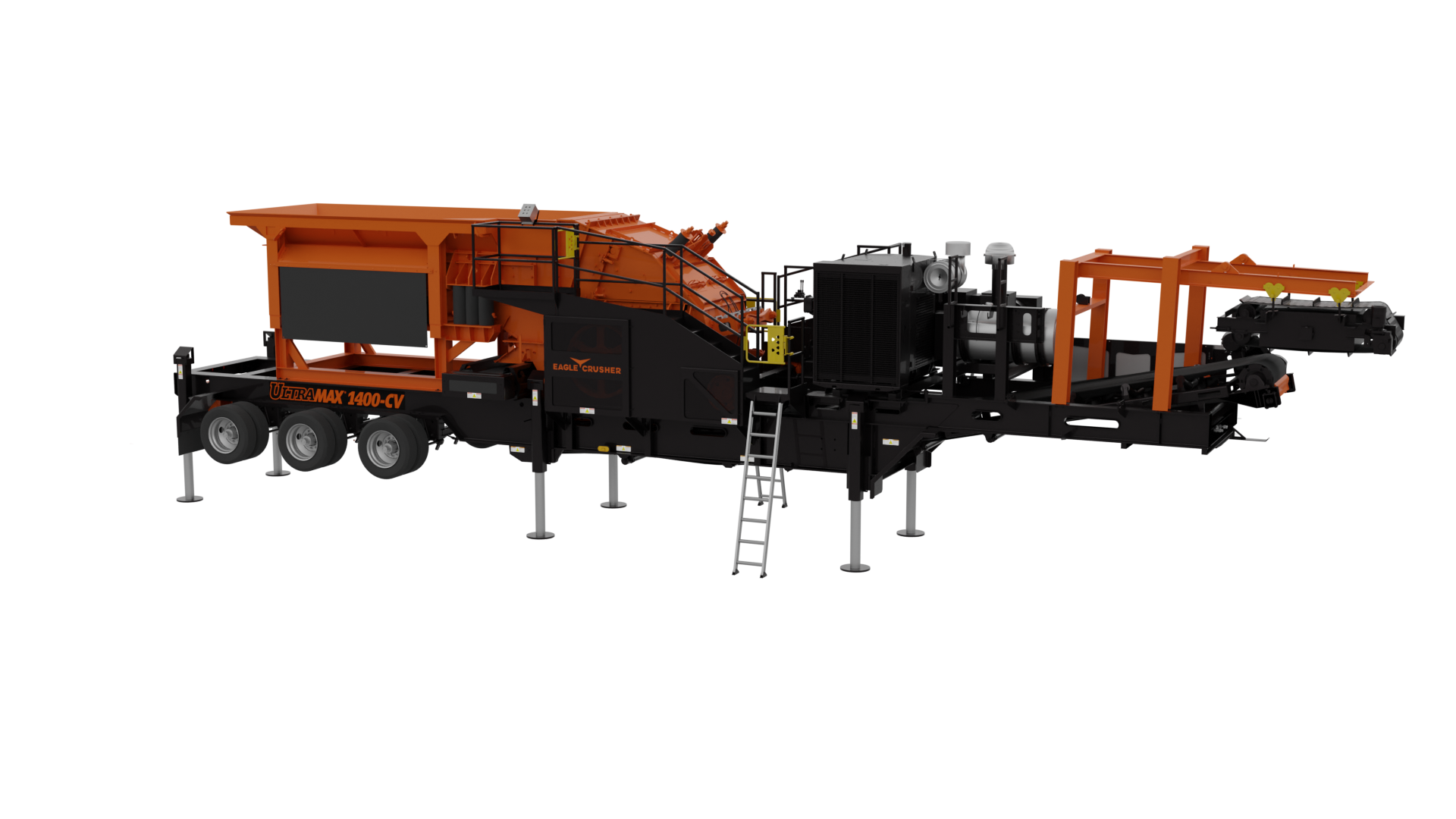

1400-45 CV

Open Circuit Portable Impactor Plant

This highly portable impactor plant is one of the most durable, reliable, and versatile plants for your larger-sized jobs.

Play the Video


Designed with built-in front-discharge conveyor.

Available in-line electro-magnet installation folds back for transport.

Hydraulic lift and leveling system enables quick set up and tear down by using the hydraulic run-on legs.

Totally self-contained, reliable diesel/electric or all-electric power. You won’t have to worry about hydraulic leaks and failures shutting you down.

Features the industry’s only LIFETIME ROTOR WARRANTY on its solid-steel, three-bar, sculptured rotor—the industry’s heaviest—to keep you up and crushing.*

*North America only.

1400-45 CV Specifications

Impactor UM-45
Operating Length 59' 0" / 18.0M
Gross Weight 132000lbs / 59874kg
Travel Length 54' 4" / 16.6M
Travel Width 11' 8" / 3.6M
Travel Height 13' 5" / 4.1M
For complete technical specifications, download our spec sheet.

1400-45 CV Additional Features

  • Features standard grizzly bypass chute and available cross-belt conveyor with flop gate to allow for either removal of the material that passes through the grizzly deck for stockpiling or blending back with the crushed material.
  • Features unique two-step, 5’ grizzly deck to remove fines before crushing.
  • Replaces dual crusher systems for a much lower initial investment and for greatly reduced maintenance, fuel and transportation costs.
  • Includes removable electrical control panel featuring pre-wired receptacles for radial stackers.
  • Manage the feeder speed for complete control of the flow of material into the impactor with Variable Frequency Drive (VFD).
  • Includes wireless remote control for the feeder shutdown and all motor stop.
