With Integrated Feed Conveyor

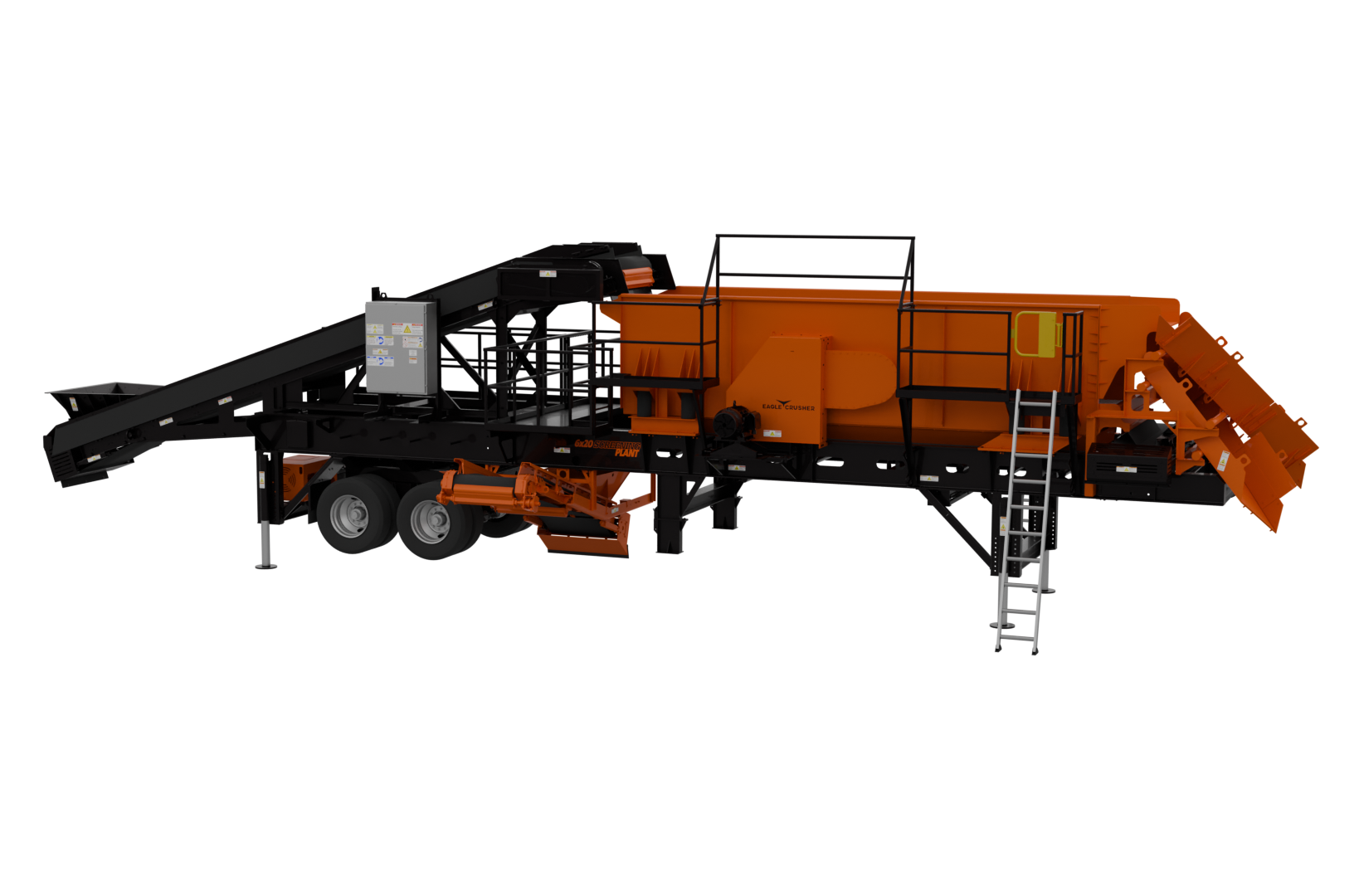

For producers that demand multi-product screening, the 6×20 Screen Plant with Integrated Feed Conveyor can produce up to four products simultaneously, three with absolute sizing, or return the oversized product for further reduction.
With Integrated Feed Conveyor
For producers that demand multi-product screening, the 6×20 Screen Plant with Integrated Feed Conveyor can produce up to four products simultaneously, three with absolute sizing, or return the oversized product for further reduction.
6x20 With Integrated Feed Conveyor Features
Additional Features
- Complete screen plant system. Just add radial stacking conveyors for stockpile capabilities.
- Produces up to four products simultaneously, three with absolute sizing, or return the oversized product for further reduction.
- The fines conveyor feeds onto a cross conveyor that can be mounted to discharge material on either side of the plant.
- The bottom deck cross conveyor can be mounted to discharge material to either side of the plant.
- Includes all-electric motors and electrical cords.
- Functions with controls built into our primary crusher for system integration or with an optional independent control system for stand-alone operation and easy integration into custom systems.
6x20 With Integrated Feed Conveyor Specifications
| Model | |
| Screen | 6×20 Three-Deck, Triple-Shaft Screen |
| Operating Length | 59′ 6″ / 18.1M |
| Gross Weight | 60000lbs / 27200kg |
| Travel Length | 60′ / 18.3M |
| Travel Width | 11′ 11″ / 3.6M |
| Travel Height | 13′ 5″ / 4.1M |
For complete technical specifications, download our spec sheet.
