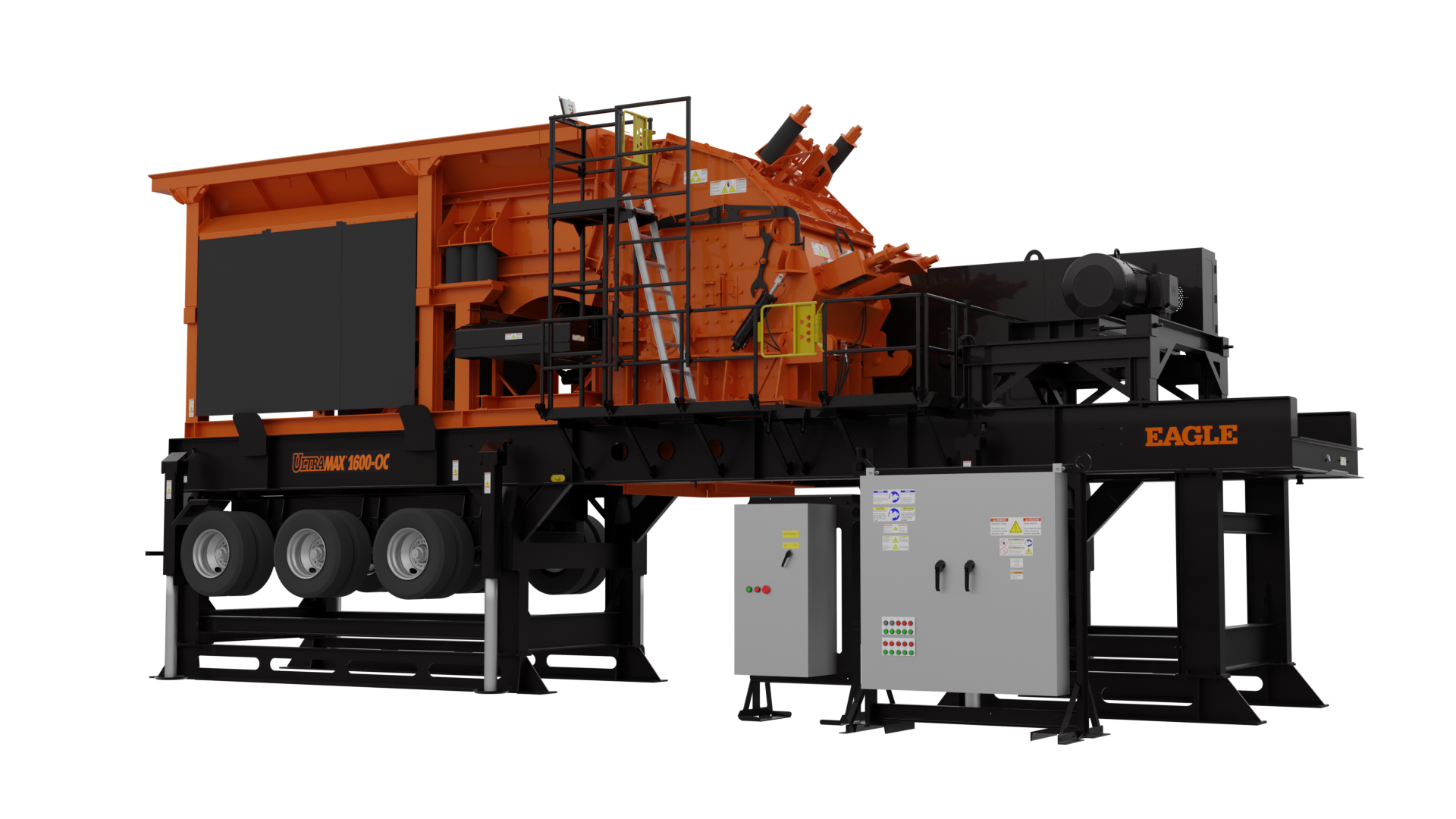

1600-69 OC

Open Circuit Portable Impactor Plant

The Eagle Crusher 1600-69 OC is the largest UltraMax® impactor plant—a mammoth in the industry—for your largest-sized jobs.

Play the Video

Features

Available with a separate side-discharge conveyor (OC model) or with a built-in front-discharge conveyor (CV model). You decide, depending on your set-up requirements.

Available in-line electro-magnet.

Hydraulic lift and leveling system for set up and tear down.

Designed for all-electric power.

Side-discharge conveyor includes a pan feeder, receiving hopper, replaceable liners, and optional full-length skirtboards.

The electrical control panel for the crusher and the auxiliary plant equipment are designed to be free standing for ease of placement on the job.

Features the industry’s only LIFETIME ROTOR WARRANTY on its solid-steel, three-bar, sculptured rotor—the industry’s heaviest—to keep you up and crushing.*

*North America only.

1600-69 OC Specifications

Model
Impactor	UM-69
Operating Length	48' 3.5" / 14.7M
Gross Weight	170000lbs / 77100kg
Travel Length	44' 0" / 13.4M
Travel Width	11' 11" / 3.6M
Travel Height	13' 5" / 4.1M

For complete technical specifications, download our spec sheet.

Download the Spec Sheet

1600-69 OC Additional Features

Replaces dual crusher systems for a much lower initial investment and for greatly reduced maintenance, power and transportation costs.
Features standard grizzly bypass chute and available cross-belt conveyor with flop gate to allow for either removal of the material that passes through the grizzly deck for stockpiling or blending back with the crushed material.
Features unique one-step, 5’ grizzly deck to remove fines before crushing.

Available grizzly cross conveyor for both OC (side-discharge unit) and CV model (front-discharge unit).
Side-discharge conveyor is available in road-portable version.
Manage the feeder speed for complete control of the flow of material into the impactor with Variable Frequency Drive (VFD).
Includes wireless remote control for the feeder shutdown and all motor stop.
