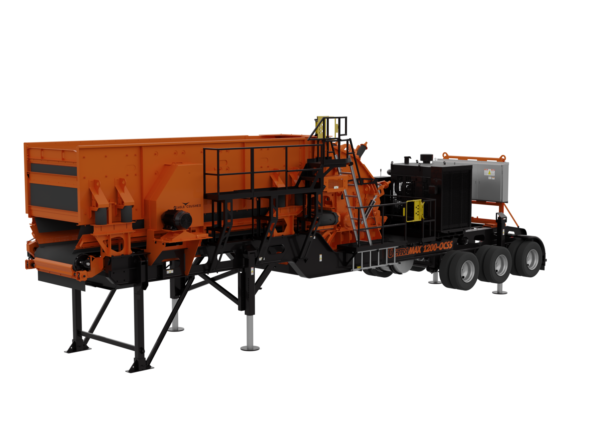

Open Circuit Secondary Impactor Plant

Regardless of the primary crusher you’re using, Eagle UltraMax® Impactors are so versatile, they’re a perfect fit as a secondary crusher.

1200_UpdatedSpecSheet RGB
EG17014-Ultramax-Numbered-Plant-Logo

Open Circuit Secondary Impactor Plant

Regardless of the primary crusher you’re using, Eagle UltraMax® Impactors are so versatile, they’re a perfect fit as a secondary crusher.

1200-25 OCSS Features

Additional Features

  • Features screening options for multiple spec products.
  • Top deck retained material feeds into the impactor for size reduction.
  • Middle deck retained material feeds onto a chute into the impactor for size reduction.
  • Bottom deck retained material feeds onto a cross conveyor for stockpiling.
  • Material passing through the bottom deck feeds onto the fines conveyor and discharges to the back of the plant.
  • Includes removable electrical control panel featuring pre-wired receptacles for radial stackers.

1200-25 OCSS Specifications

Model
Impactor UM-25
Screen 6’ x 20’ / 1.8M x 6.0M 3 deck
Operating Length 50’ 8” / 15.4M
Overall Weight 107150lbs / 48600kg
Travel Length 50’ 8” / 15.4M
Travel Width 12′ 0″ / 3.7M
Travel Height 13′ 6″ / 4.1M

For complete technical specifications, download our spec sheet.
