Screening Plant and System

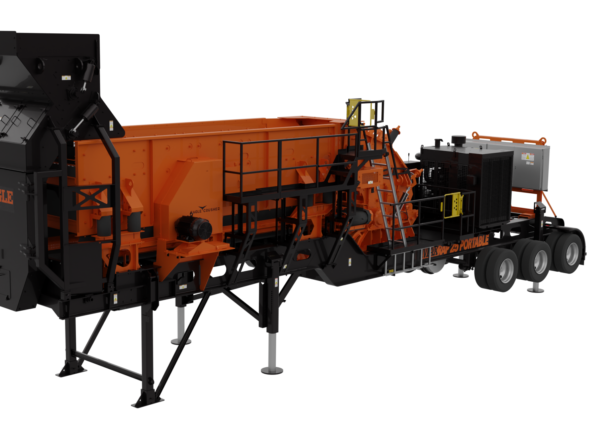

The MaxRap® 25 Portable provides the same precision crushing of the stationary MaxRap, allowing operators to crush RAP at multiple locations with ease.
Screening Plant and System
The MaxRap® 25 Portable provides the same precision crushing of the stationary MaxRap, allowing operators to crush RAP at multiple locations with ease.
MaxRap® 25 Portable Features
Additional Features

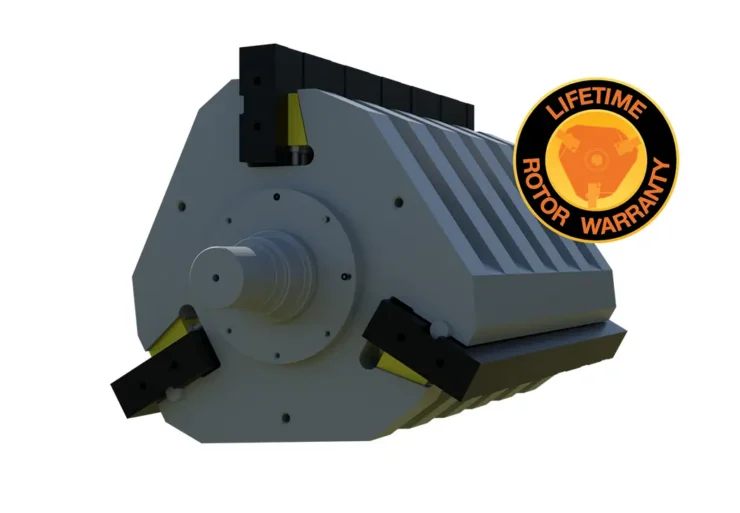

- UM-25 impactor with a 6×20 screen is designed for 600TPH drum mix plant.
- Easily allows you to switch from top to base material production from control house.
- Produces highly uniform cubicle spec product with a minimum of white rock and a minimum of fines.
- Actuated chutework allows options for the raw feed material to be:
- retained on the top screen deck to be crushed;
- retained on the top and middle screen deck to be crushed;
- diverted to either the top or middle screen deck;
- or, all the screen decks may be diverted from the crusher to stockpile.
- Service friendly design:
- Screening process can continue while crusher is removed from circuit.
- Screen chute system folds out of the way for ease of changing screen cloth.
- Screen service platforms are positioned on both sides of screen for ease of maintenance.
- Hydraulic lift and leveling system enables quick set up and tear down by using the hydraulic run-on legs.
- Includes removable electrical control panel featuring pre-wired receptacles for radial stackers.
MaxRap® 25 Portable Specifications
| Model | |
| Impactor | UM-25 |
| Screen | 6’ x 20’ / 1.8M x 6.0M 3 deck |
| Operating Length | 51’ 11” / 16.4M |
| Overall Weight | 116000lbs / 52620kg |
| Travel Length | 50’ 8” / 15.4M |
| Travel Width | 12′ 0″ / 3.7M |
| Travel Height | 13′ 6″ / 4.1M |
For complete technical specifications, download our spec sheet.
