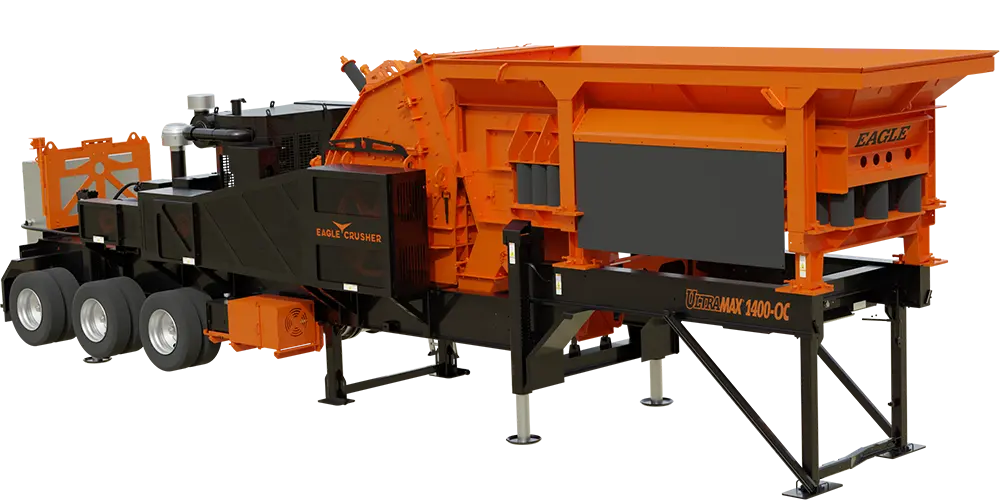

1400-45 OC

Open Circuit Portable Impactor Plant

This highly portable impactor plant is one of the most durable, reliable, and versatile plants for your larger-sized jobs.

Play the Video

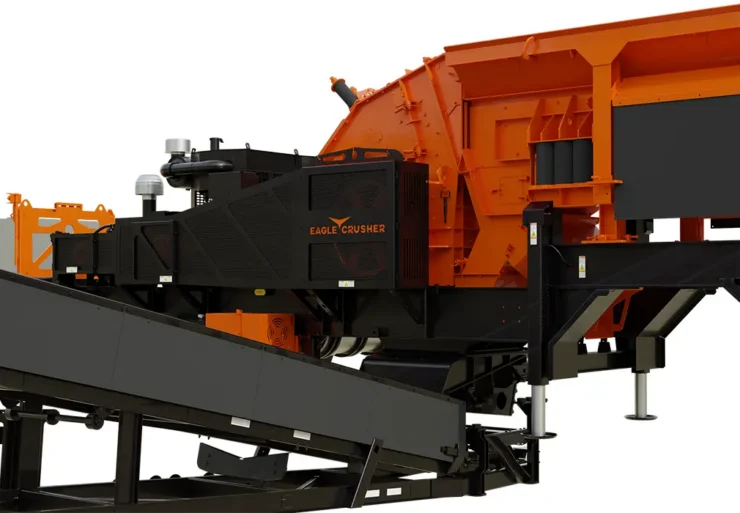

Discharge material feeds to a separate conveyor coming out of the side of the crusher at a 90-degree angle.

Available in-line electro-magnet on side-discharge conveyor.

Hydraulic lift and leveling system enables quick set up and tear down by using the hydraulic run-on legs.

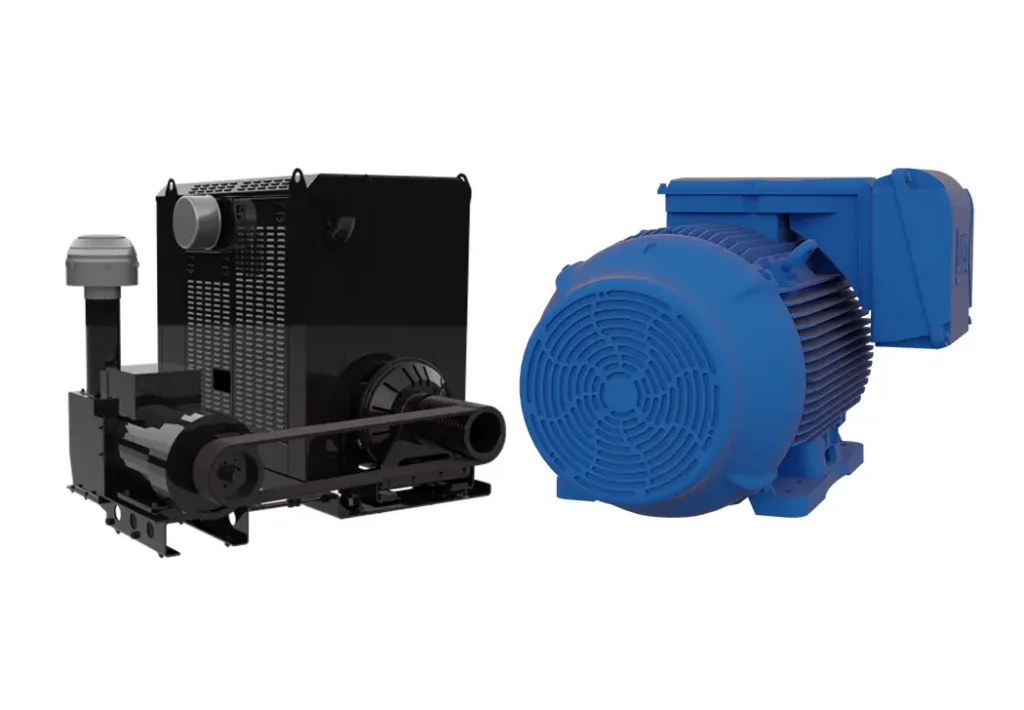

Totally self-contained, reliable diesel/electric or all-electric power. You won’t have to worry about hydraulic leaks and failures shutting you down.

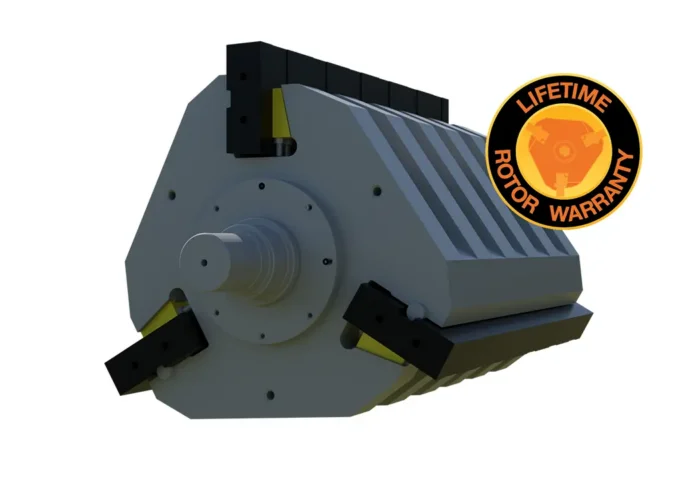

Features the industry’s only LIFETIME ROTOR WARRANTY on its solid-steel, three-bar, sculptured rotor—the industry’s heaviest—to keep you up and crushing.*

*North America only.

1400-45 OC Specifications

Impactor UM-45
Operating Length 50' 0" / 15.2M
Gross Weight 123000lbs / 55800kg
Travel Length 44' 6" / 13.6M
Travel Width 11' 11" / 3.6M
Travel Height 13' 5" / 4.1M
For complete technical specifications, download our spec sheet.

1400-45 OC Additional Features

  • Replaces dual crusher systems for a much lower initial investment and for greatly reduced maintenance, fuel and transportation costs.
  • Features unique two-step, 5’ grizzly deck to remove fines before crushing.
  • Features standard grizzly bypass chute and available cross-belt conveyor with flop gate to allow for either removal of the material that passes through the grizzly deck for stockpiling or blending back with the crushed material.
  • Side-discharge conveyor is available in road-portable version.
  • Utilizes side-discharge conveyor with receiving hopper and replaceable liners, optional full-length skirtboards and available, in-line electro-magnet that stays on for trailer transport.
  • Includes removable electrical control panel featuring pre-wired
    receptacles for radial stackers.
  • Manage the feeder speed for complete control of the flow of material into the impactor with Variable Frequency Drive (VFD).
  • Includes wireless remote control for the feeder shutdown and all motor stop.
