Impactor

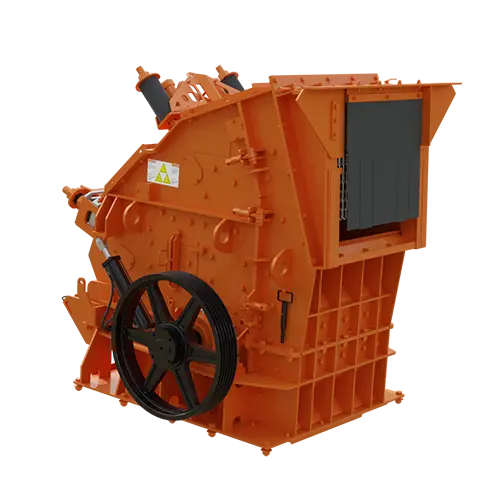

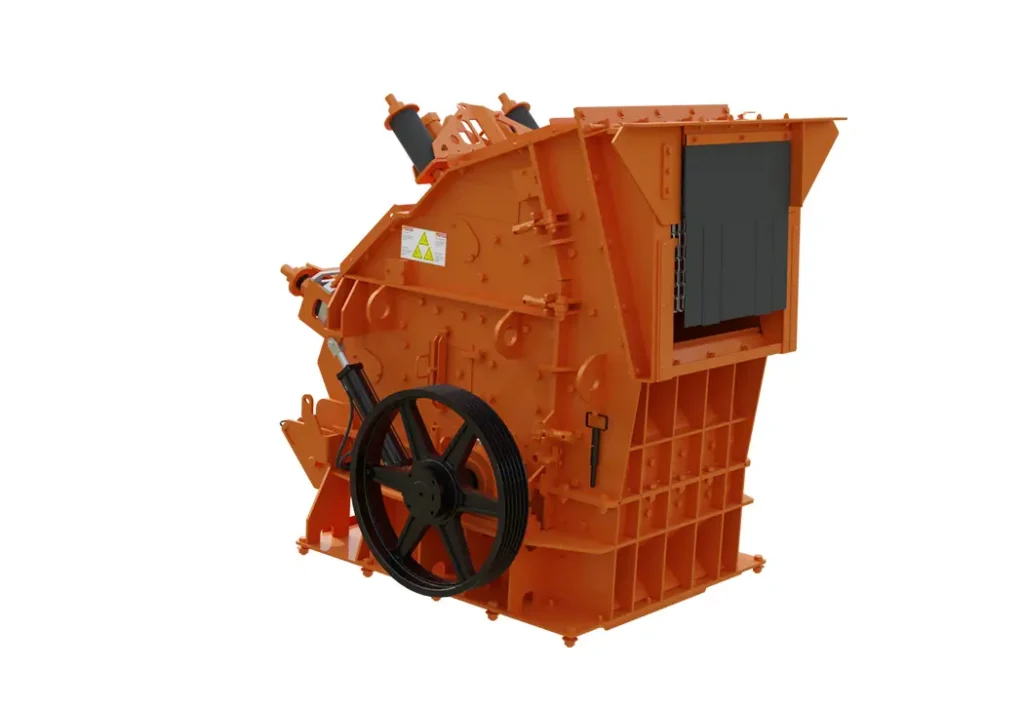

The TalonMax™ (TM-15) horizontal shaft impactor is designed specifically to meet the needs of mobile crushing operators.
The TalonMax™ (TM-15) horizontal shaft impactor is designed specifically to meet the needs of mobile crushing operators.
TalonMax Features
Additional Features
- The TM 15 impactor’s reduced weight doesn’t mean reduced production.
- The time-tested and proven three-bar design handles aggregates, recycled asphalt, and concrete with rebar and other steel contaminants with ease, thanks to its heavy-duty construction and unique crushing chamber geometry.
TalonMax Specifications
| TalonMax TM-15 Impactor | |

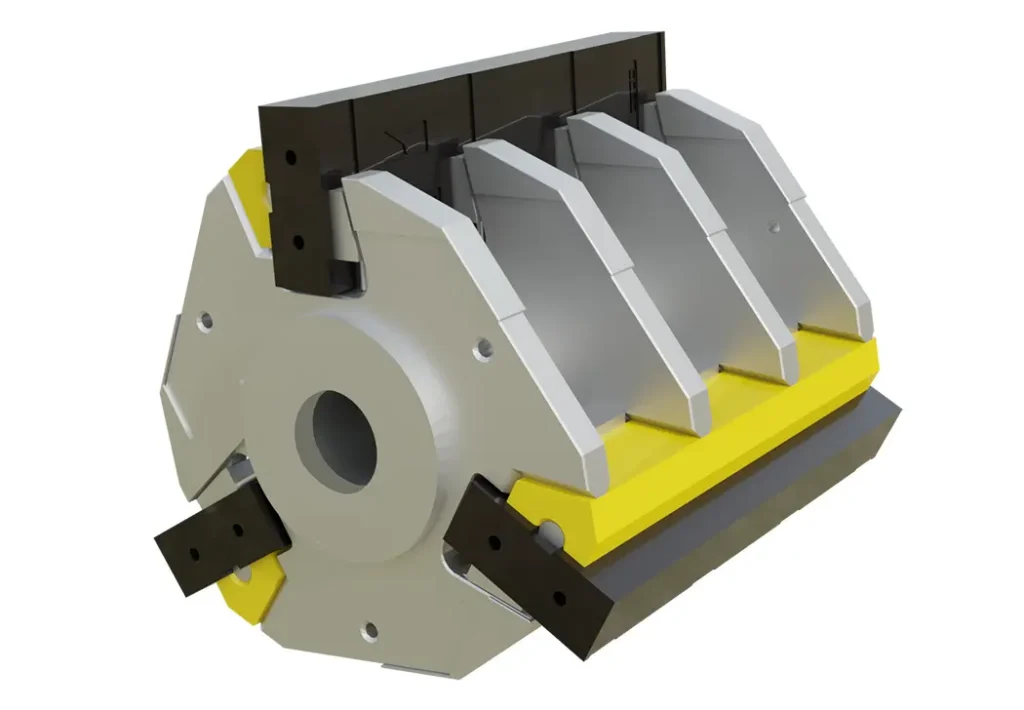

| Rotor | 44″ x 41″ / 1118mm x 1041mm |
| Feed Opening | 42″ x 32″ / 1067mm x 813mm |
| Power Required | 150HP – 200HP / 112kW – 249kW |
| Approx. Weight | 23000lbs / 10430kg |
| Rotor Weight | 6200lbs / 2811kgs |
| Production Capacity | Varies by application |
For complete technical specifications, download our spec sheet.
