Service Questions with James: Ensuring Your Rotor Lasts

When it comes to keeping your rock crusher performing at its peak, the rotor is the heart of the operation. Responsible for generating the crushing force and managing material flow, the rotor takes on intense wear and impact with every cycle. That’s why consistent servicing of your rotor is critical. Not only to avoid downtime, but to ensure your equipment’s longevity. With proper care and timely maintenance, a rotor can stand the test of time and serve your operation for generations.

Properly Removing Blow Bars

The first step for the removal of the existing blow bars is to lock out/tag out your equipment.  Then, lock the rotor by carefully rotating it so that the safety pin can be inserted. This is to ensure the rotor will not spin while maintenance is being performed.

Install the blow bar removal tool that is located on the side of the impactor lid. Make sure you have a little tension so the blow bar will not move while removing the wedges.

Once the tool is in place, remove the glue from the wedges to expose the jam screw. Remove the jam screw to expose the wedge screws. Loosen the wedge screws. Next, hit the wedges downward to knock them loose, then remove the wedge and set aside.

Once all the wedges are removed for that bar you are working on, you can take some tension off your blow bar tool and slide your blow bar forward so that the locking bar can be removed.

If you need more advice on installing blow bars, check out this previous Service Questions with James.

Cleaning the Rotor Prior to Reinstalling

Clean the locking bar with a wire wheel or sanding disk to ensure there is no mud or dirt on the locking rod.

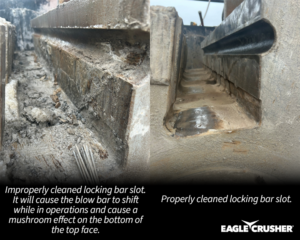

Clean the slot where the locking bar sits on your rotor. The locking bar must sit correctly when reinstalled.

Clean wedges so they will last.

Clean the faces of the rotor.

The reason these steps are so important is because if your blow bars do not sit flat on the rotor, the locking bar will not lock correctly and cause a mushroom effect on the bottom of the top rotor face. If it is not corrected, the blow bar can shift and sit incorrectly. It’s imperative to take the extra couple minutes to clean your rotor while doing a blow bar change or flip.

Maintenance Now or Costly Downtime Later

Neglecting rotor maintenance can lead to costly repairs, decreased efficiency, and shortened equipment life. By taking a proactive approach of inspecting for wear, balancing regularly, and following manufacturer guidelines, you can extend the life of your crusher while protecting your investment. With consistent servicing, your rotor can continue doing what it was built to do: crush with precision and power for years to come.

Need more help? Reach out to Eagle Crusher’s Service Team or authorized dealers for any questions you may have.
